APPLICATION:

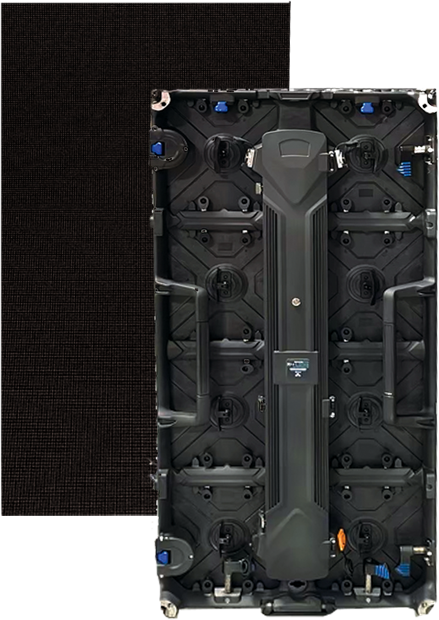

Purposed for outdoor fixed installations such as billboards or monument work, the ODX-P3.91 Outdoor offers high resolution video while retaining enough dependability and fortitude to withstand harsh conditions. With the backbone to handle inclement weather and a stunning image output that rivals its indoor-rated counterparts the ODX-P10S Outdoor is a flexible LED solution for nearly any fixed outdoor application.

TECHNICAL SPECIFICATIONS:

•  Pixel Pitch: 3.91mm
•  Drive Method: 1/16
•  LED Type: SMD2020
•  Brightness: >5,5000 nit
•  Pixel Density: 65,536 pix/m2
•  Viewing Angle: 140°H and 140°v
•  Module Size: 250w x 250h mm (9.84 x 9.84 in)
•  Cabinet Size: 500w x 1000h mm
•  Cabinet Weight: 6kg/24kg m2 (13.2 lbs. 52.8 m2)
•  Cabinet Material: Diecast Aluminium
•  Average/Max Power Consumption: 200W/600W m2
•  Refresh Rate: 3840HZ
•  Voltage : 100-240V
•  IP Rating: IP65 front side / IP54 back side
•  Operating Temperature : -20 - 50ºC (10 - 90% RH)
•  Life Span (hrs): ≥50,000
•  Compliance Standard: CE, RoHS, CCC
•  Typical Control System is NovaSTAR
