APPLICATION:

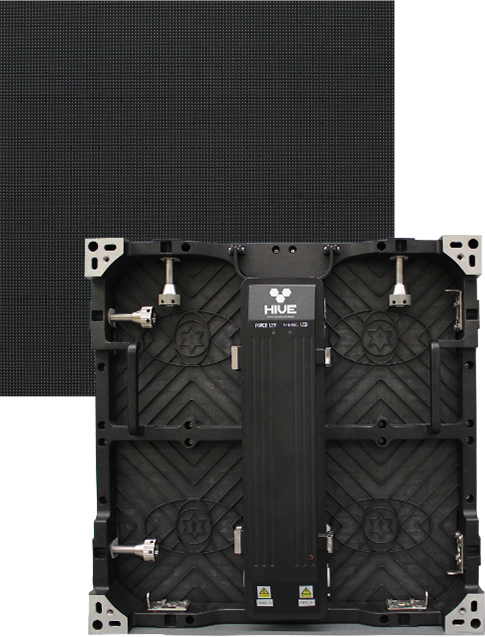

Designed for touring and rental applications where quick installation and light-weight performance is essential. HIVE DCX Series delivers high resolution - high contrast images in a rigid yet light-weight diecast aluminum form factor. All cabinets in the DCX series are 500mm x 500mm. Assembly is achieved through a precision tensionable bayonet system and allows panels to be removed from the center of an existing screen for easy maintenance.

TECHNICAL SPECIFICATIONS:

• Pixel Pitch: 3.91mm
• Drive Method: 1/16
• LED Type: SMD2020
• Brightness: ≥1,200cd/m2
• Pixel Density: 65,536 pix/m2
• Viewing Angle: 140°H and 140°v
• Module Size: 250w x 250h mm (9.84 x 9.84 in)
• Cabinet Size: 500w 500h (19.68 x 19.68 x 3.46 in)
• Cabinet Weight: 6kg/24kg m2 (13.2 lbs. 52.8 m2)
• Cabinet Material: Diecast Aluminium
• Average/Max Power Consumption: 200W/600W m2
• Refresh Rate: 3840Hz
• Voltage : 100-240V
• IP Rating: IP31
• Operating Temperature : -20 - 50ºC (10 - 90% RH)
• Life Span (hrs): ≥50,000
• Compliance Standard: CE, RoHS, CCC
• Typical Control System is NovaSTAR
